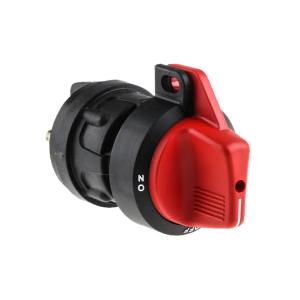

36V 75920 Battery Master Disconnect Switch For Material Handling

Name: 36V 75920 Battery Master Disconnect Switch For Material Handling
Brand: TONGLI
Price: 90 USD

China 36V 75920 Battery Master Disconnect Switch For Material Handling wholesale

Brand Name : TONGLI

Model Number : 75920

Place of Origin : CHIANA

MOQ : 1

Price : 90

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 300000

Packaging Details : 300x200x200cm

Contact Now

75920 SERIES
36V Master Battery Disconnect Switch 75920 for Material Handling

Applications
Heavy-Duty Truck
Construction
Agricultural Equipment
Material Handling
Mining
Off-Road Vehicles
Emergency Vehicles
Marine
Features and Benefits
36V 75920 Battery Master Disconnect Switch For Material Handling

High amperage continuous current capacity of 400A with

a single 4/0 cable at 12V DC, 300A at 24V DC, or 200A at

36V DC

• IPX8-rated waterproof battery disconnect switch for

external mounting on vehicles as well as installation on

boats and marine equipment

• Can be used in high-side or low-side applications

• Black or gray thermoplastic housing with a UL 94 V-0 rating

• Tested per SAE J1455 for salt, calcium chloride, and

magnesium chloride, delivering a rust- and corrosion-free

high-amp battery disconnect

• Large red, yellow, or black knob makes the master battery

disconnect switch easy to operate while wearing gloves,

and the 90° switch travel makes it simple to identify the

switch position

• Built-in lock-out/tag-out (LOTO) satisfies OSHA

requirements for an energy isolation device

• Large divider on the base prevents accidental shorting of

high energy cables

36V 75920 Battery Master Disconnect Switch For Material Handling
